Long Stroke Grippers




[https://www.grippers.com/1top-xray.html]

XRAY Gripper Models

The Power Out Brake Option stops the gripper's
jaws from moving if power is lost.

(An encompassing grip
must be employed for this option to be effective.)

Xray Grippers - specifications of force jaw torque, and load capability.

Grippers

Force, Each Jaw @

690 kPa (100 psi)

Power Out Brake

Weight

Stroke

XRAY-1250-100

1250N (280 lbs)

No

10.9kg

(24lbs)

100mm

(3.94")

XRAY-1250-100-POB

1250N (280 lbs)

Yes

11.4kg

(25 lbs)

100mm

(3.94")

XRAY-1250-200

1250N (280 lbs)

No

13.6kg

(30 lbs)

200mm

(7.87")

XRAY-1250-200-POB

1250N (280 lbs)

Yes

14.1kg

(31 lbs)

200mm

(7.87")

XRAY-1250-350

1250N (280 lbs)

No

13.6kg

(30 lbs)

350mm

(13.78")

XRAY-1250-350-POB

1250N (280 lbs)

Yes

14.1kg

(31 lbs)

350mm

(13.78")

Tandem XRAY-1250-200

2500N (560 lbs)

No

42kg

(93 lbs)

200mm

(7.87")



Force and Torque Unmatched

ZAYTRAN’s well known SIGMA® grippers are the unchallenged world leaders in torque and force capability. The XRAY system borrows the same linear bearing concept. However, to minimize weight and size, ceramic bearings are utilized rather than ball bearing rails. The torque and force capabilities of the XRAY family are maintained over the life of the gripper due to the length of the bearing surface over which the loads are distributed. (SIGMA is a registered trademark of ZAYTRAN, Inc.)

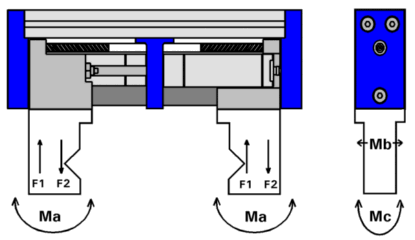

MODEL

Ma : Nm

(ft-lbs)

Mb : Nm

(ft-lbs)

Mc : Nm

(ft-lbs)

F1 : kg

(lbs)

F2 : kg

(lbs)

XRAY-1250

550

(405)

600

(440)

550

(405)

670

(1500)

450

(1,000)

Tandem XRAY-1250

1100

(810)

1200

(880)

1100

(810)

1214

(3000)

900

(2,000)
